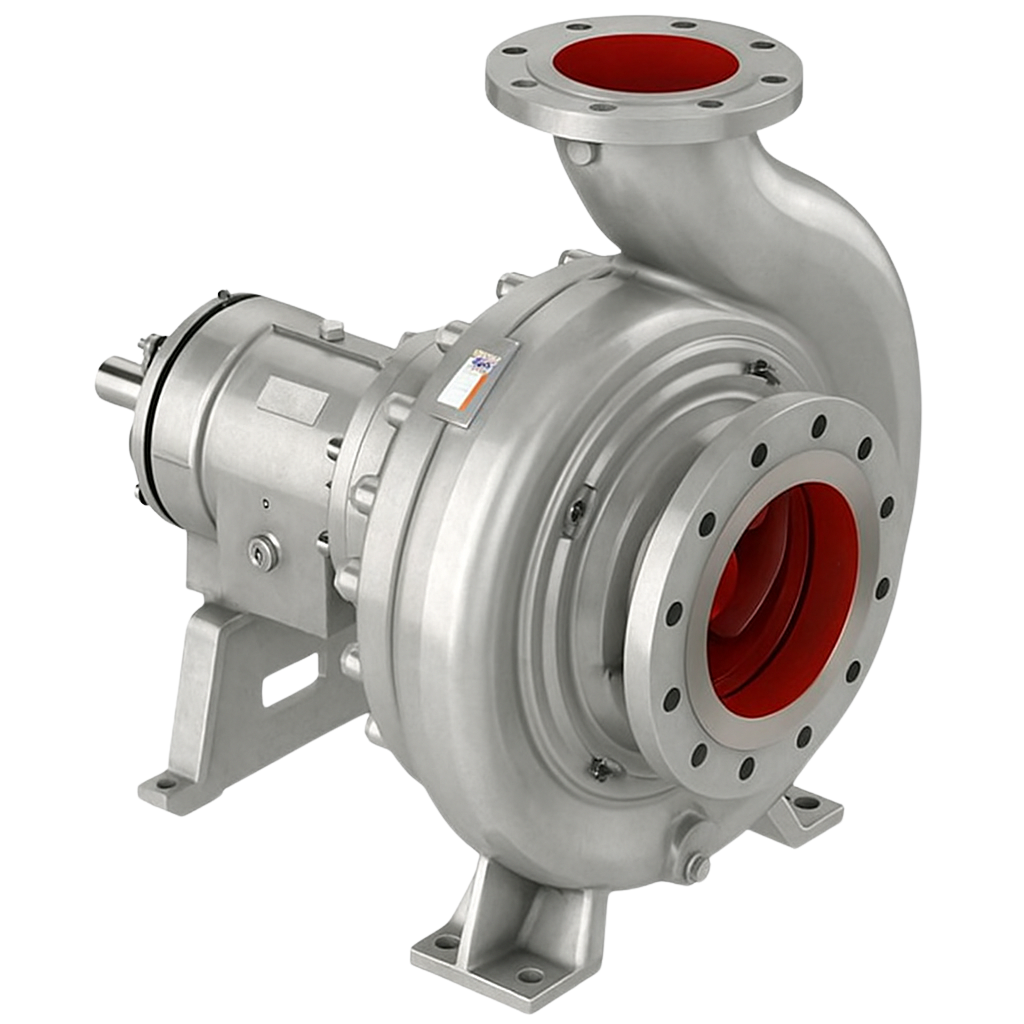

3180 Heavy duty Process Pump

G Series 3180 — Proven heavy-duty performance for the toughest process challenges.

Consider the advantages:

• Excellent Hydraulic Coverage
• High Efficiency
• Extreme Ease of Maintenance
• Optimum Mechanical Reliability
• International Design

Specifications

• Capacities to 40000 GPM (9000 m3/h)
• Heads to 410 feet (125 m)
• Temperatures to 446° F (230° C)
• Pressures to 16 bar (232 PSIG)

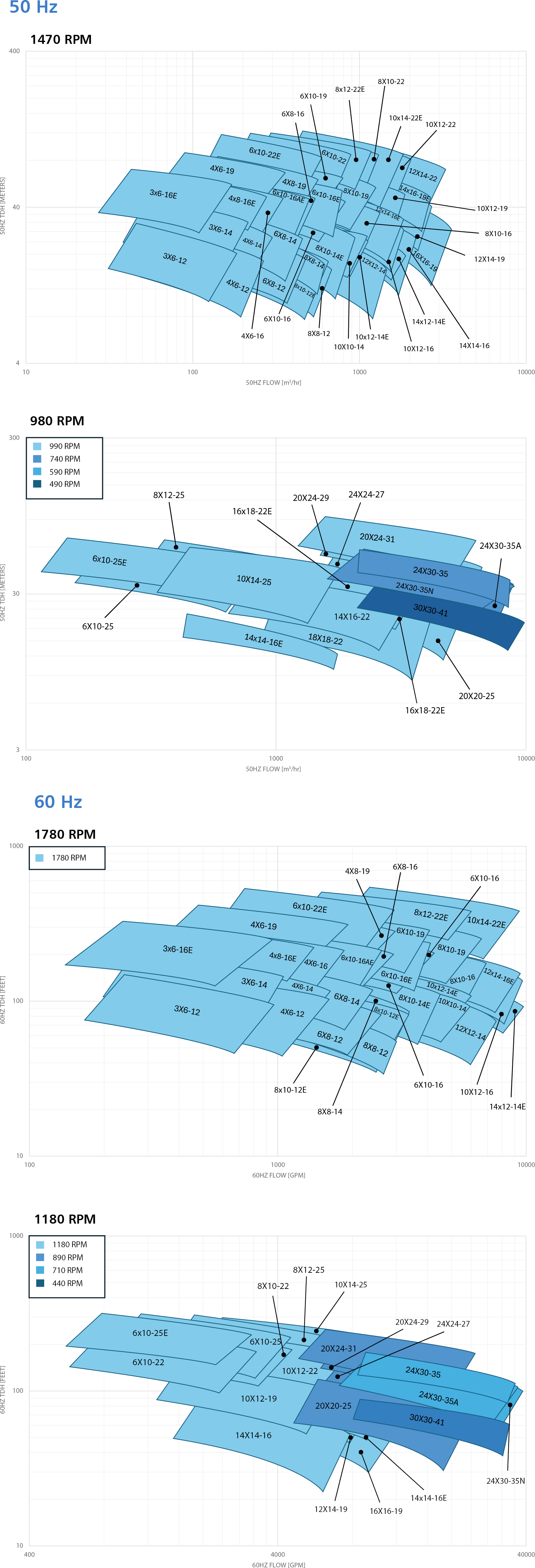

  • Hydraulic Coverage
    Line designed for full 50/60 Hz coverage.
  • External Impeller Adjustment
    Original high performance maintained by simple axial adjustment resulting in low operating costs, reduced downtime.
  • Sealing Flexibility
    Choice of packing, mechanical seals or dynamic seal.
  • Application Flexibility
    Choice of open or enclosed impeller.
  • Back Pull-out Construction
    Spacer-type coupling allows one craft maintenance.
  • Renewable Wear Parts
  • Low maintenance costs.
  • Labyrinth Seals
    Eliminate lubricant contamination for maximum bearing life.
  • Maximum Parts Interchangeability
    Entire line uses just four power ends.
  •
