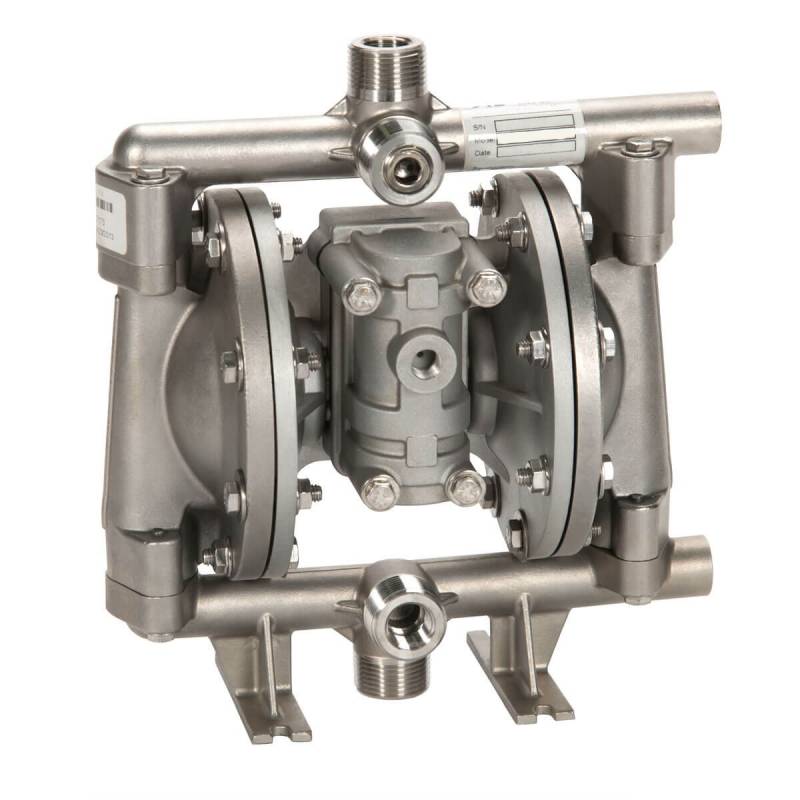

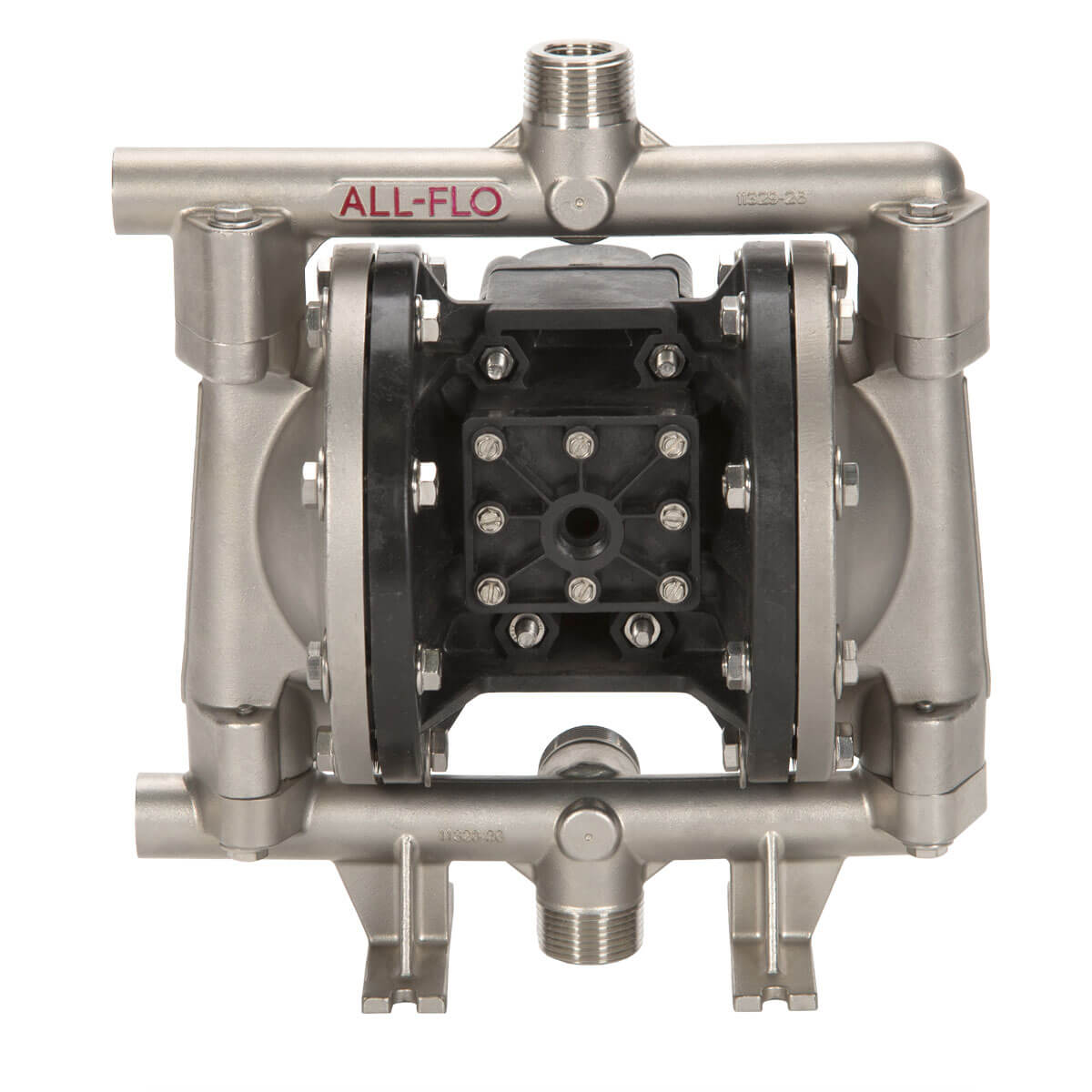

A050 – ½ Inch Metal Pumps

Air Inlet

• 1/4″ FNPT

Liquid Inlet

• 1/2″

Liquid Discharge

• 1/2″

Connection Type

• FNPT/FBSPT (Threaded)

Max Suction Lift Capability

• 15 ft-H₂O (4.6 m-H₂O) Dry
• 31 ft-H₂O (9.4 m-H₂O) Wet

Max Flow Rate

• 15 gpm (56.8 lpm)

Max Pressure

• 120 psi (8.2 bar)

Max Diameter Solids

• 1/8″ (3.2 mm)

Displacement Per Stroke

• 0.03 gal (0.10 L)
