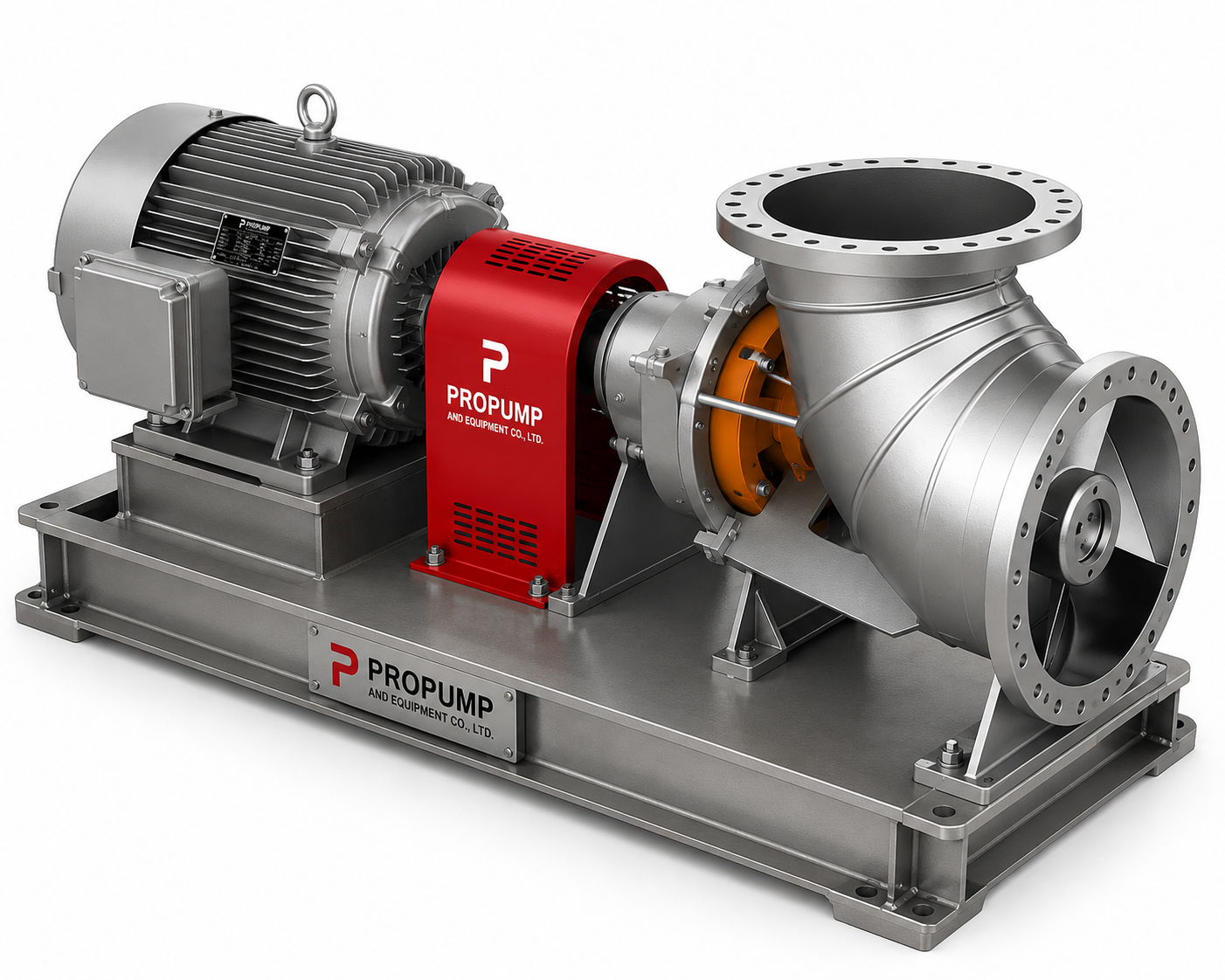

PROPUMP AF Series
PROPUMP AF Series
Axial Flow Pump for Ultra High Capacity Applications
PROPUMP AF Series is specifically engineered for applications requiring extremely high flow rates at low discharge heads. Utilizing advanced axial flow hydraulic technology, the series delivers outstanding efficiency, reliable operation, and low operating costs in large-volume liquid transfer systems.
Designed for continuous-duty industrial and municipal services, the AF Series provides dependable performance in water transfer, flood control, evaporator circulation, cooling systems, and process recirculation applications.
Performance Range
- Capacity up to 68,000 m³/h
- Head up to 9 m
- Operating temperature up to 180°C
- Maximum working pressure up to 10 bar
- Available for both 50 Hz and 60 Hz operation
Key Features
Ultra High Flow Hydraulic Design
- Optimized axial flow impeller technology
- Exceptional capacity handling capability
- Low energy consumption per unit volume transferred
- Stable operation under continuous service conditions
Multiple Impeller Configurations
- Various impeller designs available
- Customized hydraulic selection for specific applications
- Optimized efficiency across different duty points
- Improved operational flexibility
Heavy-Duty Mechanical Construction
- Robust bearing housing assembly
- Heavy-duty shaft design
- Reduced vibration levels
- Extended service life under continuous operation
Continuous Duty Reliability
- Designed for 24-hour industrial operation
- Suitable for critical process services
- Proven performance in severe operating environments
- Low maintenance requirements
Ease of Maintenance
Back Pull-Out Construction
- Simplified maintenance procedures
- Reduced downtime
- Easy access to rotating components
- Faster inspection and overhaul
Service-Friendly Design
- Simplified component replacement
- Improved accessibility to wear components
- Reduced maintenance labor
- Lower lifecycle operating costs
Hydraulic Performance
High Efficiency Operation
- Optimized hydraulic passages
- Reduced energy consumption
- Improved system efficiency
- Lower operating costs
Large Capacity Capability
- Suitable for bulk liquid transfer
- Stable operation across a wide flow range
- Reliable performance in large-scale installations
- Ideal for low-head applications
Materials of Construction
Available in various materials to suit process requirements:
- Cast Iron
- Ductile Iron
- Stainless Steel 316 / 316L
- Duplex Stainless Steel
- Alloy 20
- CD4MCu
- Titanium
- Hastelloy Alloys
- Special materials upon request
Typical Applications
Chemical Industry
- Evaporator Circulation
- Crystallizer Circulation
- Process Recirculation Systems
- Utility Water Services
Mining & Minerals
- Phosphate Processing
- Potash Processing
- Soda Ash Production
- Salt Processing Facilities
Petroleum & Petrochemical
- Reactor Circulation Systems
- Process Cooling Services
- Hydrocarbon Processing Utilities
Pulp & Paper
- Black Liquor Circulation
- Evaporator Systems
- Chemical Recovery Processes
- Bleaching Plant Utilities
Municipal Services
- Sewage Digester Circulation
- Wastewater Treatment Facilities
- Raw Water Intake Systems
Water & Flood Control
- Flood Control Stations
- Storm Water Pumping
- Irrigation Systems
- Raw Water Transfer
Marine Applications
- Ballast Water Transfer
- Cooling Water Systems
- Utility Water Services
Food Processing
- Sugar Evaporator Circulation
- Corn Processing
- Cane Sugar Production
- Beet Sugar Processing
PROPUMP Advantages
- Extremely high flow capability
- Excellent efficiency at low head conditions
- Robust mechanical reliability
- Reduced maintenance requirements
- Long equipment service life
- Suitable for continuous-duty operation
- Broad material availability
- Comprehensive engineering support and spare parts service
