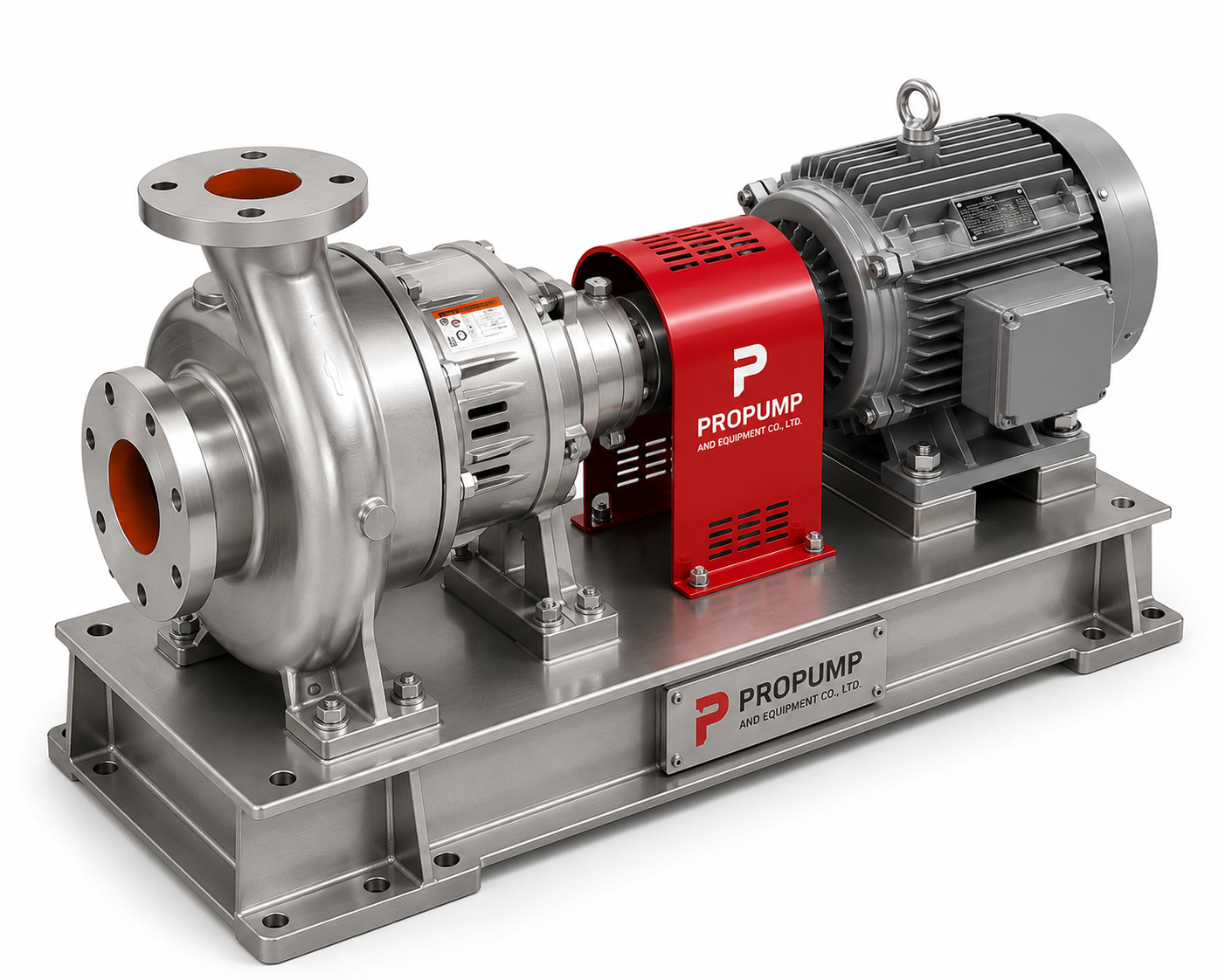

PROPUMP Solids Handling Process Pump Series

Engineered for Slurries, Fibrous Liquids and Solids-Laden Process Services

PROPUMP Solids Handling Process Pumps are specifically developed for applications involving suspended solids, fibrous materials, crystals, slurries, and liquids containing entrained air or gas. The hydraulic design combines excellent solids handling capability with reliable process performance, helping minimize clogging, reduce product degradation, and maintain stable operation in demanding industrial environments.

The recessed impeller and concentric casing configuration allow the pump to transfer difficult fluids efficiently while protecting sensitive solids from excessive shear forces.

Performance Range

• Capacity up to 1,590 m³/h
• Head up to 223 m
• Operating temperature up to 371°C
• Maximum working pressure up to 26 bar
• Available for both 50 Hz and 60 Hz systems
• Multiple hydraulic sizes available

Key Features

Superior Solids Handling Capability

• Recessed impeller design for reduced clogging
• Excellent performance with suspended solids and fibrous materials
• Suitable for liquids containing entrained air or gas
• Low shear characteristics for sensitive products

Advanced Hydraulic Design

• Optimized concentric volute casing
• Stable flow characteristics across a wide operating range
• High efficiency hydraulic performance
• Reduced turbulence and solids accumulation

Enhanced Mechanical Reliability

• Heavy-duty bearing housing
• Premium thrust bearing arrangement
• Optimized shaft support system
• Reduced vibration and shaft deflection
• Extended equipment service life

Seal Chamber Design

• Enlarged seal chamber construction
• Improved cooling and lubrication around mechanical seals
• Multiple sealing options available
• Designed for demanding process applications

Condition Monitoring Ready

• Optional vibration monitoring
• Optional temperature monitoring
• Supports predictive maintenance programs
• Improved equipment reliability and asset management

Maintenance Advantages

Back Pull-Out Construction

• Rotating assembly removable without disconnecting piping
• Reduced maintenance downtime
• Faster inspection and repair procedures

External Impeller Adjustment

• Easy adjustment during maintenance
• Simplified service procedures
• Improved operating efficiency

Flexible Installation Options

• Various mounting arrangements available
• Motor adapter options available
• Suitable for new installations and replacement projects

Safety & Durability

• Heavy-duty casing construction
• Factory pressure-tested pressure-containing components
• Industrial coupling guard protection
• Robust structural support system
• Designed for continuous-duty operation

Typical Applications

• Filter Slurries
• Latex Processing
• Polymer & Plastic Bead Transfer
• Crystal Suspensions
• Pulp & Paper Reject Handling
• Hydropulper Systems
• Sodium Chlorate Slurry
• Fruit & Vegetable Processing
• Dye and Pigment Liquors
• Fibrous Wastewater
• White Water Systems
• Primary Cleaner Applications
• Industrial Sludge Transfer
• Waste Treatment Processes

PROPUMP Advantage

• Excellent solids handling capability
• Reduced clogging and maintenance requirements
• Suitable for abrasive and fibrous services
• Low product degradation characteristics
• Long equipment life and reliable operation
• ANSI process pump dimensional compatibility
• Comprehensive technical support and spare parts availability
