3196 i-FRAME Process Centrifugal Pump

Proven Performance

G Series 3196 ANSI Standard Process Pump was introduced, it quickly established itself as the benchmark for reliability and efficiency in the industry.
Today, countless installations across chemical, petrochemical, pulp & paper, and general manufacturing plants confirm its outstanding performance.
Engineers and operators trust G Series 3196 as the preferred choice when performance and durability truly matter.

• Capacities to 7000 GPM (1590 m 3 /h)
• Heads to 730 feet (223 m)
• Temperatures to 700° F (371° C)
• Pressures to 375 PSIG (26 bar)
• Fully Open Impeller
• Engineered Seal Chambers
  • Patented Taperbore™ PLUS Seal Chamber
  • BigBore™ Seal Chambers
• i-FRAME Power Ends
  • Optional Onboard Condition Monitoring
  • Inpro VBXX-D Hybrid Bearing Isolators
  • Optimized Sump Design
  • Premium Severe Duty Thrust Bearings

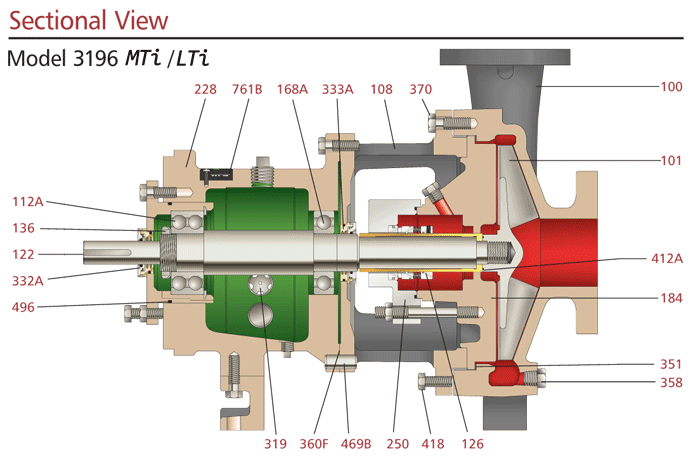

  • LTi Power End for High Load Applications
• Engineered Pump Mounting Systems
• Ease of Maintenance
  • Back Pull-out Design
  • External Impeller Adjustment

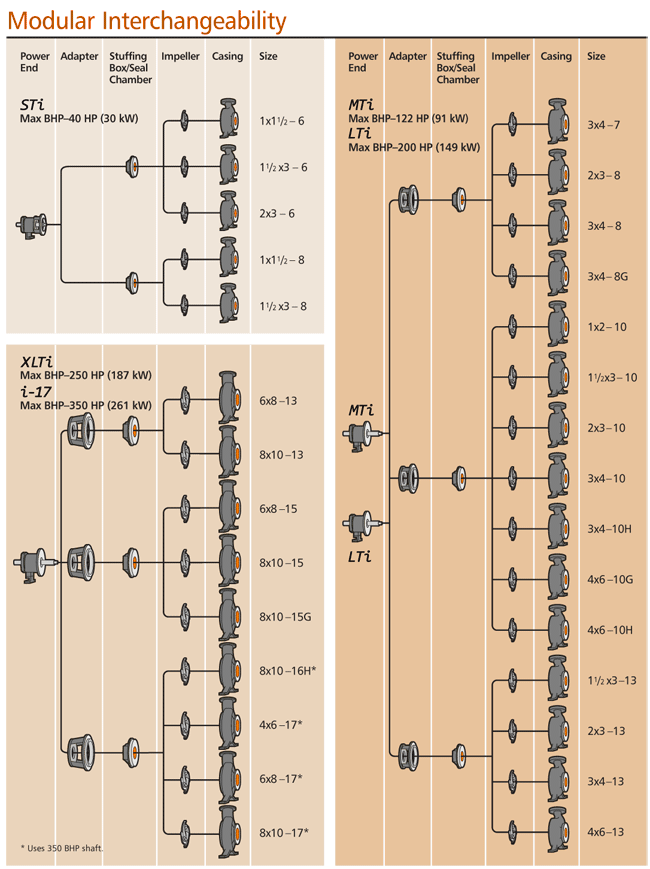

  • Maximum Interchangeability
  • Optional C-Face Motor Adapter
• Optimum Hydraulic Performance
  • Fully Open Impeller
  • Full 50/60 Hz Coverage
  • 29 Sizes
  • Pump Selection Software
• Safety
  • Heavy Duty Casings
  • Hydrostatic Testing of All Pressure Retaining Components
  • ANSI B15.1 Coupling Guard
  • Ductile Iron Frame Adapter
  • Optional Shaft Guard
